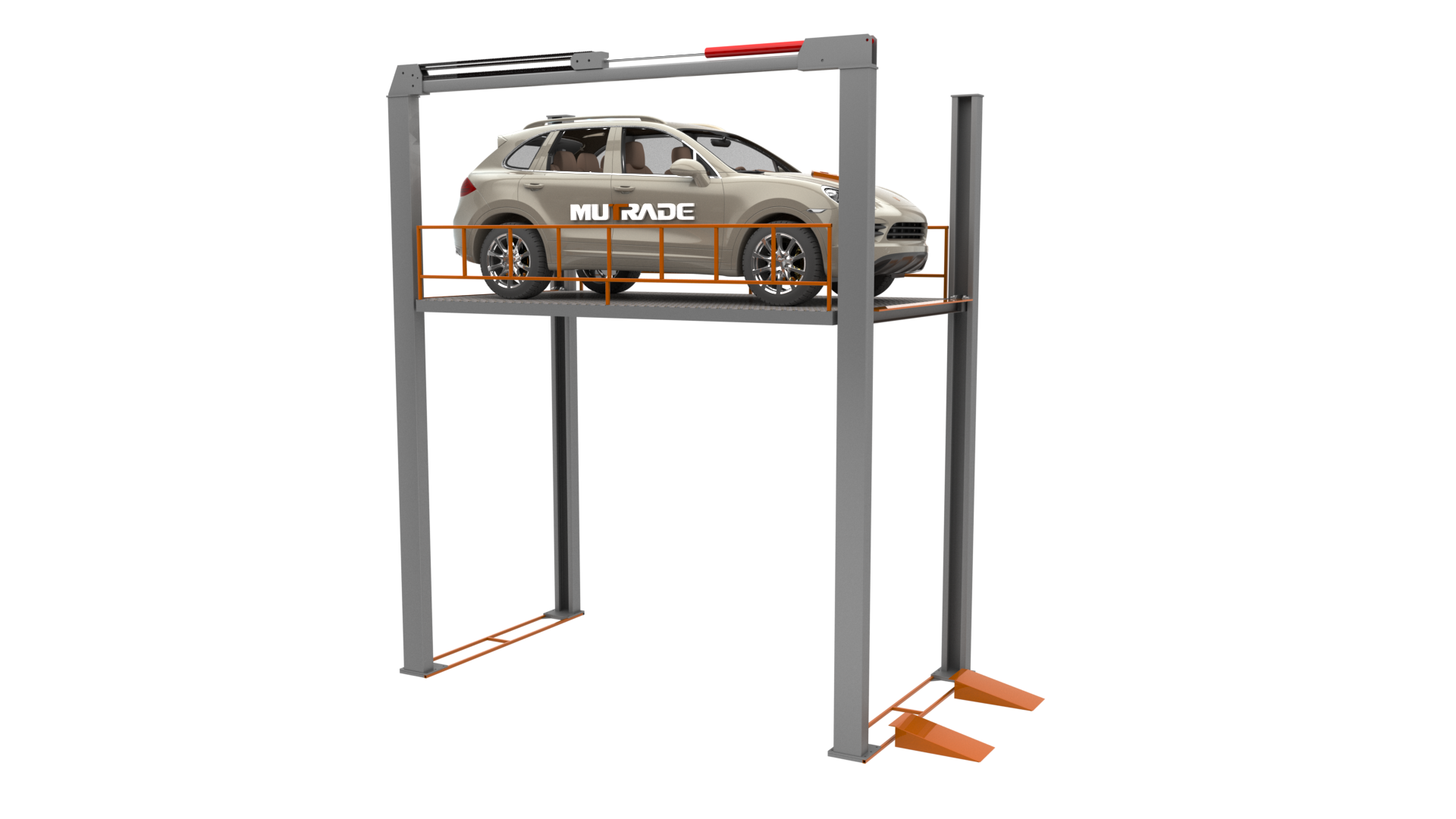

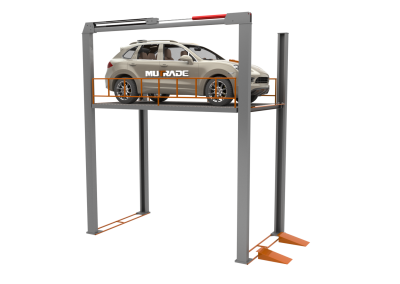

FP-VRC Four Post Vertical Reciprocating Conveyor

Call Us Now

Need the most cost-effective solution to move vehicles from one floor to another? FP-VRC is the perfect solution to connect different floors, particularly when heavy construction is to be avoided. This unique lift is a four post design that can sit directly on the ground or in a small pit to have easier access for vehicles. It’s highly customizable in dimensions, capacity, and travel to accommodate various vehicles and different environment & situational requirements.

Lifting Capacity 4,400-16,200 lbs
Speed of rise 13ft /min
Power 220-480v, 50/60hz, 3 phases
PLATFORM:
Length 78″ – 275″
Width 78″ – 196″
LIFT:
Lifting Height 78″ – 512″
